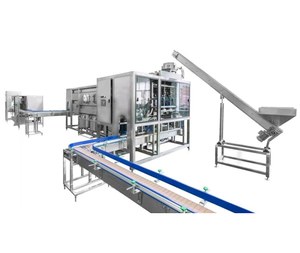

600BPH 5 Gallon Water Bottle Rinser Filler Capper 3 In 1(QGF-600)

Product Description

1. QGF series barrel production line is specially used for 5 &3 gallon drinking water.
2. This machine integrates washing, filling, capping into one unit. It is ideal choice for produce mineral water, distilled water, pure water equipments.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
Sidemen's electric components are adopted as main components. The world famous product of Air TAC and Omron are introduced in the air circuit systems.
4.The machine is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high automation .Only two operators are needed for a line ,which is wholly automatic barreled equipment with motor ,electric unit and air three in one.
5. Pneumatic parts are imported.
6. Rinsing nozzles adopt American spraying system technology.
7. With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine.

Technical Parameter

Technical Parameter:

Model: QGF-600

Production capacity: 600B/Hour

Filling heads: 4

Gas pressure: 0.6Mpa

Gas consumption: 0.5m2/h

Pure water inner washing consumption: 2500kg/h

Rated voltage: 380V/50HZ

Motor power: 11Kw

Overall dimension: 5000╳1850╳1900mm
