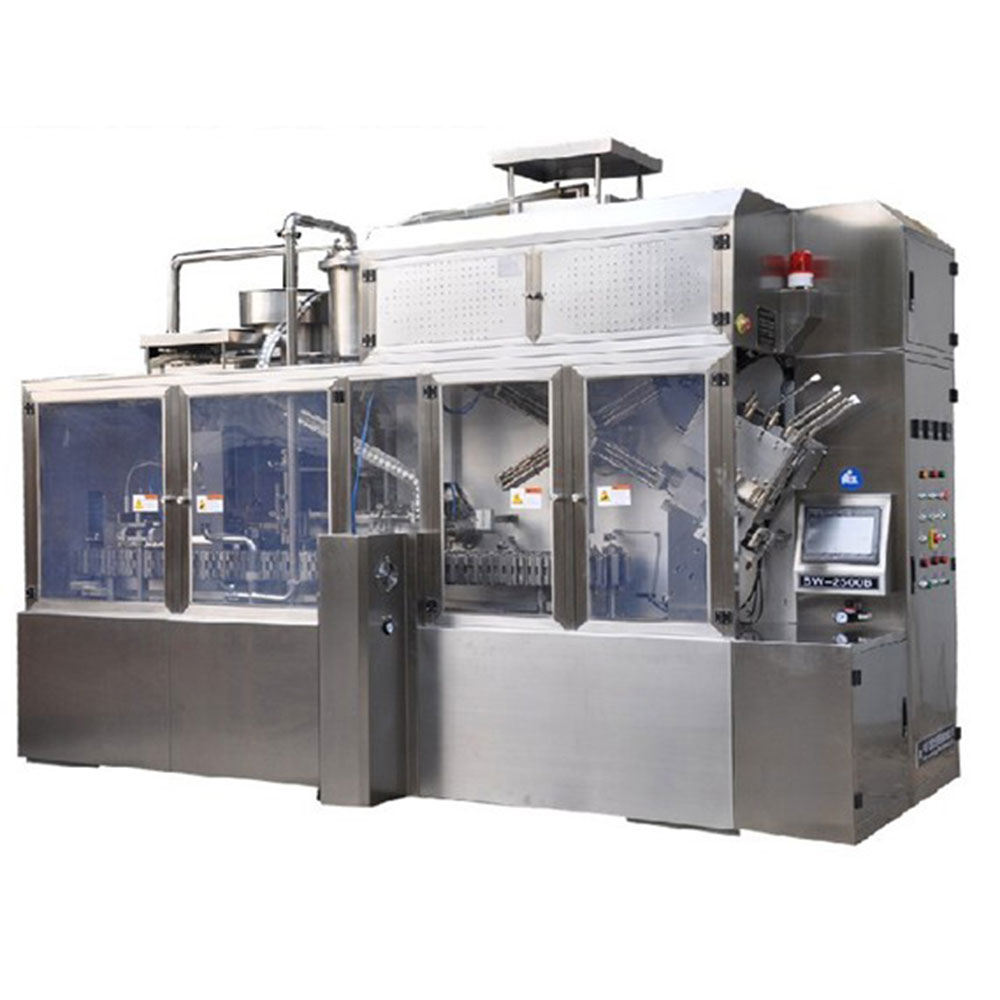

Automatic Gable Top Carton Milk Filling Machine

Product Description

Automatic Gable Top Carton Milk Filling Machine

Various kinds of dairy products, such as milk, yogurt, cream, soy been milk, liquid egg,etc.


1.    Applicable carton size: 250--1000ml / 1000ml-2000ml (can be filled by one machine)

2.    Production capacity: 1800-2500 cartons/hour

3.    Packing material: cardboard carton / aluminium foil carton

(Carton bottom size 57*57mm, 70*70mm, 95*95mm, one size for one machine)

4.    Capping: With capping (Optional)  cap size: φ26-φ36, one size for one machine

5.     Shelf life: milk, yogurt: 7--21days ( 2-6℃ storage)acid juice: 30–60 days (2-6℃ storage)

whipped cream: 12 months (-18℃ storage)

6.     Filling temperature: 2-50 degree centigrade

7.    Overall power: 25KW (three phases of electricity)

8.    Compressed air pressure: 1.0-1.4 Mpa,   Flow rate: 1.4-2M3/min, without oil, water and dust

9.    Cooling water:Flow volume:≥40L/ min   Temperature:≤30℃

10.  Size: (L*W*H): 3.7m*1.6m*2.8m      Net Weight: 3500kg

11.   Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.

12.  The machine is with carton lifting function to avoid foam forming and splashing when filling juice and milk.

13.  The machine is made of food-grade stainless steel and the surface is special processed to be beautiful.
