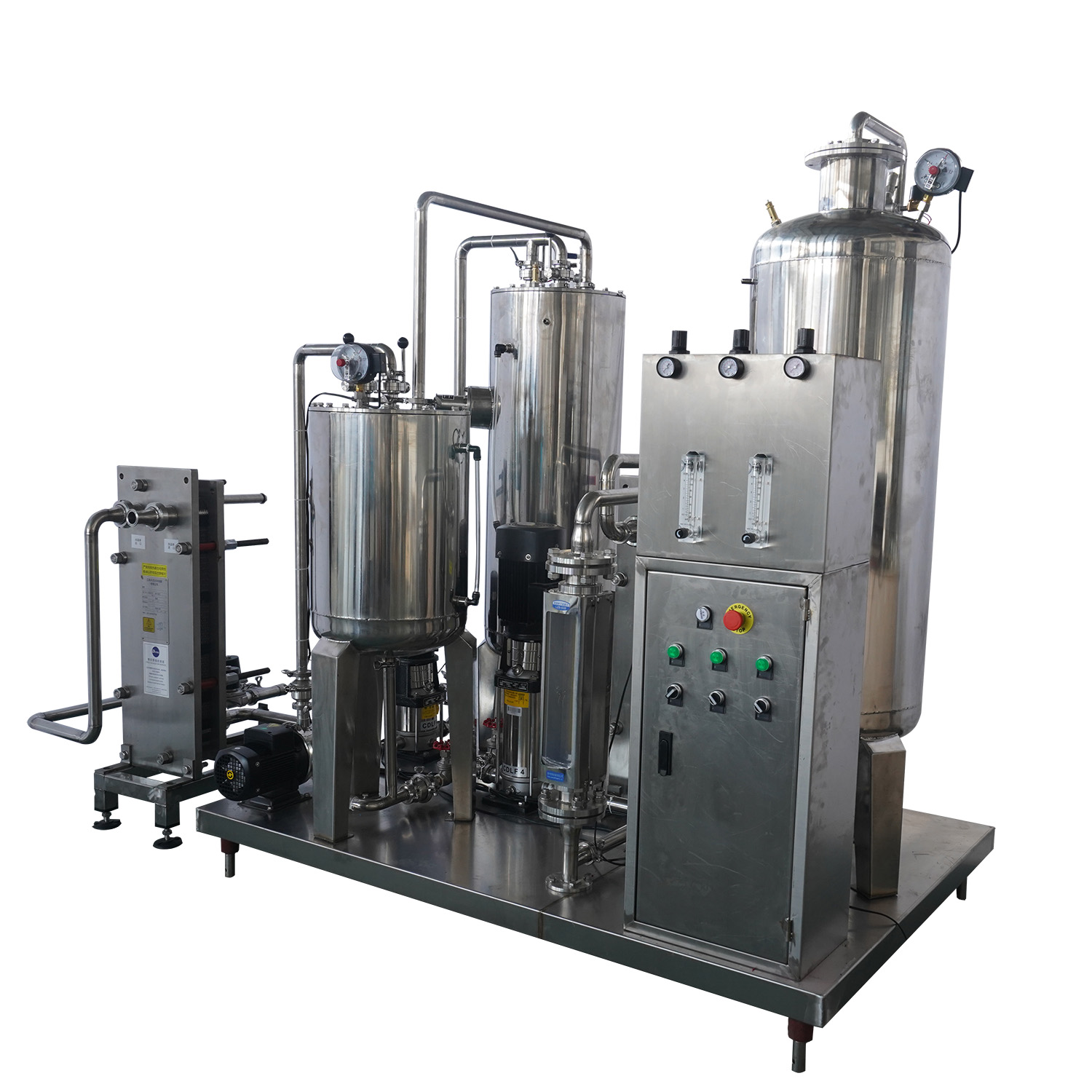

Beverage Mixer CO2 Carbonator(QHS-5000)

This beverage mixer can apply to thin beer, aerate for beer and producing sparkling wine plant.
  • QHS-5000

  • MARS

  • 842230

Product Description


1. All PLC control, full-automatic working
2. Touch screen contril panel, easy operate
3. This equipment utilizes a vacuum pump to deair the water, then a Syrup Tank, a Water Tank and a Mixing Tank are used to mixing the water and syrup according to the pre-determined ratio.
4. High quality Grandfos pump and Venturi device are used to mix the CO2, and drive the beverage through a heat exchanger to reduce the beverage temperature.
5. The final beverage storage tank is also a carbonating tank with the thermal insulating jacket to keet the product at 4 C.
6. The proportion between water and syrup can be adjusted from 3: 1 to 6: 1, and the concentration of CO2 can be more than 7g/L.
7. The capacity is from 3,000L/H to 15,000L/H.
