Shrink Wrap Machine Operations: Temperature Control & Film Selection Guide

The packaging industry relies heavily on efficiency and presentation, where the shrink packing machine serves as a cornerstone for securing products. Whether you are bundling beverage cans or sealing high-end electronics, the synergy between machine settings and material properties determines the final quality. Modern production lines require a deep understanding of how heat interacts with polymer films to create a professional, tamper-evident finish.

The operation of a shrink packing machine involves a precise calibration of temperature, airflow, and conveyor speed to ensure that the shrink film conforms perfectly to the product shape without burning or creating wrinkles. Successful results depend on matching the specific polymer type, such as Polyolefin (POF) or Polyethylene (PE), with the thermal output of the shrink tunnel to achieve a consistent, crystal-clear seal.

In this comprehensive guide, we will explore the technical nuances of industrial shrink wrapping. From the physics of thermal contraction to the granular details of film chemistry, this article provides the operational knowledge necessary to optimize your packaging line. We will cover maintenance, troubleshooting, and the critical selection criteria that separate high-performance operations from those plagued by excessive waste and downtime.

How Shrink Wrapping Works

The core mechanism of a shrink packing machine is the application of controlled heat to a specialized plastic film that has been pre-stretched during manufacturing, causing it to return to its original, smaller state around a product.

At the molecular level, shrink wrapping is a thermodynamic process. The shrink packing machine utilizes films that have been "oriented," meaning the polymer chains were stretched and cooled into a set position. When the machine's heat tunnel applies energy to the film, these chains relax and contract. This contraction exerts uniform pressure on the item being wrapped, creating a tight, protective skin that enhances structural integrity and provides a moisture barrier.

The process typically begins at the sealing station, where the shrink packing machine wraps the product in a loose sleeve or bag of film. An L-bar sealer or a continuous side sealer creates a perimeter weld, cutting away excess material. Once sealed, the product moves via conveyor into the shrink tunnel. Inside, recirculated hot air surrounds the package, triggering the shrinking reaction almost instantaneously before the product exits into a cooling zone to set the plastic.

Understanding the relationship between the shrink packing machine and the material is vital. If the heat is applied too slowly, the film may "relax" rather than shrink, leading to a dull, loose finish. Conversely, if the heat is too intense or focused on one spot, the film will reach its melting point and rupture. Achieving the "sweet spot" of contraction requires a harmony between the machine's mechanical timing and its thermal distribution.

Temperature Control Fundamentals

Temperature control is the most critical variable in operating a shrink packing machine, as it must stay within a specific "shrink window" to ensure the film reaches its maximum contraction without losing its clarity or tensile strength.

Effective temperature management in a shrink packing machine starts with the PID (Proportional-Integral-Derivative) controllers found in the heat tunnel. These controllers monitor the internal environment and adjust the heater output to maintain a constant temperature, even as cold products enter the chamber. For most POF films, the tunnel temperature typically ranges between 150°C and 180°C, though this varies based on film thickness and conveyor speed.

Precision is necessary because different films have different glass transition temperatures. If the shrink packing machine operates too low, the result is "under-shrunk" packaging characterized by wrinkles and loose corners. If the temperature is too high, the film may develop "burn-through" holes or become brittle. Operators must also account for the thermal mass of the product; a cold metal object will absorb more heat from the tunnel than a light plastic bottle, necessitating a higher temperature setting to achieve the same shrink result.

Furthermore, the consistency of the shrink packing machine temperature is influenced by airflow. High-velocity air helps strip away the boundary layer of cool air surrounding the package, allowing for more efficient heat transfer. Modern machines use adjustable baffles to direct air to the top, bottom, or sides of the package, ensuring that the seal area and the bulk of the film shrink at a synchronized rate to prevent distortion.

Film Selection Criteria

Choosing the correct film for your shrink packing machine depends on the product's weight, shape, shelf-life requirements, and the desired aesthetic finish of the final package.

There are three primary materials used in shrink packing machine operations:

1. Polyolefin (POF): The industry standard for retail products. It is incredibly versatile, strong, and has excellent clarity.

2. Polyethylene (PE): Primarily used for heavy industrial loads or multi-packs of water bottles. It is thicker and offers superior puncture resistance but lacks the high-gloss finish of POF.

3. Polyvinyl Chloride (PVC): Once common, but now less popular due to the release of odors during sealing and its tendency to become brittle over time.

When selecting film for a shrink packing machine, you must consider the "shrink ratio," which is the percentage the film will contract in the Machine Direction (MD) versus the Cross Direction (CD). For instance, a high-profile product requires a film with high MD shrink to wrap around the height of the item effectively. Additionally, the "gauge" or thickness of the film (measured in microns or mils) must be balanced; thicker film provides more protection but requires more energy from the shrink packing machine to shrink properly.

The following table compares common film characteristics for use in a shrink packing machine:

Common Shrink Defects and Solutions

Defects in shrink wrapping are usually the result of an imbalance between heat, air velocity, and film tension within the shrink packing machine environment.

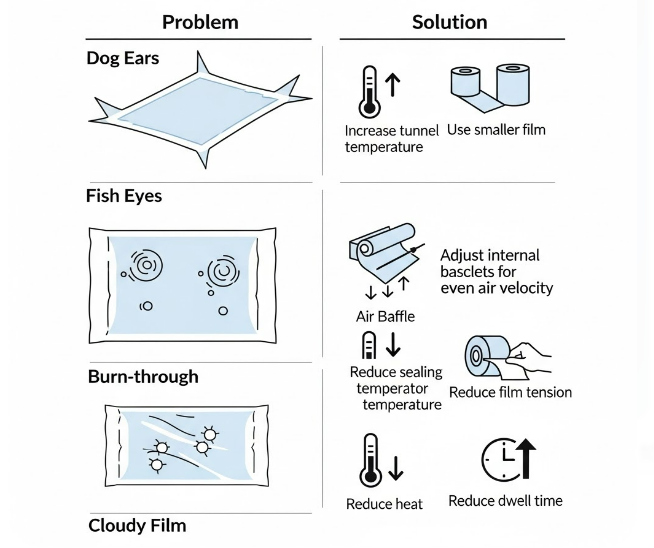

One of the most common issues is "Dog Ears," which are triangular protrusions of unshrunk film at the corners of a package. This usually happens because the shrink packing machine is not providing enough heat to the corners or the film is too large for the product. To solve this, operators can increase the tunnel temperature, slow down the conveyor, or use a film with a higher shrink percentage.

"Fish Eyes" are circular patterns or wrinkles on the surface of the film, indicating that the heat was not applied evenly or the air velocity was too low. In a shrink packing machine, this is often fixed by adjusting the internal baffles to ensure that hot air hits all sides of the package simultaneously. If the film appears cloudy or "scorched," it is a sign that the temperature is too high or the product is dwelling in the tunnel for too long.

Another frequent problem is "Burn-through," where holes appear in the film. This often occurs at the seal line if the sealing wire of the shrink packing machine is too hot or if the film is under too much tension. Reducing the sealing temperature or adjusting the film unwind tension can mitigate this. By systematically adjusting one variable at a time, operators can fine-tune their shrink packing machine to eliminate these common aesthetic and structural defects.

Line Speed Optimization

Line speed optimization involves finding the maximum conveyor velocity at which the shrink packing machine can still deliver consistent, high-quality results without compromising the seal integrity.

The throughput of a shrink packing machine is governed by the "dwell time"—the amount of time the product spends inside the heated tunnel. If the line moves too fast, the film does not receive enough thermal energy to fully contract. If it moves too slow, the film may overheat or the product itself could be damaged by the high temperatures. Optimizing this requires a calculated balance where the tunnel temperature is raised slightly to compensate for a faster conveyor speed.

To maximize efficiency, the shrink packing machine must be integrated with the upstream and downstream equipment. Automatic sensors should trigger the film feed and sealing arm in perfect synchronization with the incoming product flow. Using a variable frequency drive (VFD) on the conveyor allows operators to make micro-adjustments to the speed, ensuring that the shrink packing machine keeps pace with the rest of the production line while maintaining a steady gap between packages for uniform airflow.

When increasing line speed, it is also important to monitor the cooling phase. As products exit the shrink packing machine, they need a "quench" period to solidify the film. If the line speed is too high and the cooling zone is too short, the film may remain tacky or stretch out of shape as it moves onto the next stage of the packaging process. High-speed fans at the tunnel exit can help accelerate this setting process.

Tunnel Design Considerations

A well-designed shrink tunnel for a shrink packing machine must provide uniform heat distribution and precise airflow control to accommodate various product dimensions and film types.

The internal architecture of the shrink packing machine tunnel determines its efficiency. A "recirculating" air design is preferred, as it reuses heated air, reducing energy consumption and maintaining a more stable temperature. The placement of the heating elements—typically finned strip heaters—should be strategically located to avoid "cold spots" within the chamber. High-quality insulation is also essential to keep the outer skin of the machine cool and prevent heat loss to the factory floor.

Airflow control is another pillar of tunnel design. A high-performance shrink packing machine features adjustable louvers or baffles that allow the operator to direct the air. For example, when wrapping tall items, the air should be directed towards the bottom of the package first to ensure the film shrinks upward, preventing air from being trapped inside. This prevents the "ballooning" effect that can occur when the top of the film shrinks and seals before the bottom.

The conveyor belt material within the tunnel also matters. Silicone-coated rollers or teflon-coated mesh belts are common in shrink packing machine designs because they do not stick to the hot film. Some tunnels use "live rollers" that rotate as they move through the tunnel, which helps prevent "burn marks" on the bottom of the package and ensures the underside of the film receives adequate heat for a complete shrink.

Film Handling Best Practices

Proper film handling is essential to prevent machine jams and ensure that the material retains its physical properties before it ever enters the shrink packing machine.

Shrink film is sensitive to environmental conditions. It should be stored in a cool, dry place, away from direct sunlight or heaters, as premature exposure to heat can cause the film to begin shrinking on the roll, making it unusable for the shrink packing machine. Operators should also avoid dropping or "flat-spotting" the rolls, as any deformation in the core can lead to uneven tension and tracking issues during the unwinding process.

Loading the film into the shrink packing machine requires precision. The film must be threaded through the tension rollers and dancer bars according to the manufacturer's diagram. If the film is too loose, it will bunch up at the sealer; if it is too tight, it may snap or cause the seal to fail. Many modern shrink packing machines include an automatic film unwind feature that uses a motor to feed the film, reducing the physical strain on the sealing mechanism and ensuring a consistent supply of material.

Using a "perforator" is also a key part of film handling. Most shrink packing machines have a small wheel with pins that pokes tiny holes in the film. These holes allow air to escape as the film shrinks. Without proper perforation, the air becomes trapped, creating a "bubble" that can burst or leave the package looking bloated. Operators should regularly check the perforator pins to ensure they are sharp and not clogged with plastic residue.

Safety Considerations

Operating a shrink packing machine involves high temperatures and fast-moving mechanical parts, necessitating strict adherence to safety protocols to prevent burns and entanglement injuries.

The most immediate hazard in a shrink packing machine is the heat tunnel and the sealing bar. The sealing wire or blade can reach temperatures exceeding 200°C, and the tunnel interior is equally dangerous. All machines must be equipped with protective guards and "Caution: Hot" signage. Operators should never reach into the tunnel or under the sealing arm while the machine is powered on. Emergency stop buttons must be clearly marked and accessible from multiple points around the machine.

Electrical safety is another priority. Because a shrink packing machine draws significant power for its heating elements, the wiring must be inspected for wear and the machine must be properly grounded. During maintenance, a "Lockout/Tagout" (LOTO) procedure must be followed to ensure the power cannot be accidentally restored while someone is working on the internal components.

Finally, air quality should be monitored. While modern POF films are relatively clean, some films can release small amounts of fumes when heated. Ensuring that the shrink packing machine is located in a well-ventilated area, or equipped with an exhaust system, protects the long-term health of the operators. Regular safety training should be conducted to ensure all personnel know how to react in the event of a film fire or mechanical failure.

Maintenance Requirements

A consistent maintenance schedule is the only way to prevent unplanned downtime and ensure the shrink packing machine produces high-quality packaging shift after shift.

Daily maintenance for a shrink packing machine should focus on cleanliness. The sealing wire or blade must be cleaned of any plastic buildup using a soft cloth or a manufacturer-approved cleaner. Carbon buildup on the seal bar acts as an insulator, leading to weak seals and requiring higher temperatures that shorten the life of the heating element. Additionally, the conveyor belt should be checked for debris that could snag the film or damage the product.

Weekly and monthly tasks involve deeper mechanical inspections. This includes:

1. Lubricating the drive chains and bearings to prevent friction wear.

2. Inspecting the silicon rubber or teflon tape on the sealing pad; if these are burnt or worn, the seal quality will drop.

3. Checking the tension of the conveyor belt and the film unwind system.

4. Testing the accuracy of the temperature sensors using an external probe to ensure the shrink packing machine is actually heating to the displayed temperature.

Keeping a spare parts kit on hand is highly recommended. For a shrink packing machine, this kit should include extra sealing wires, teflon tape, heating elements, and fuses. By replacing these "wear items" before they fail, you can maintain a high OEE (Overall Equipment Effectiveness) and avoid the costs associated with rush shipping parts during a production stoppage.

Troubleshooting Workflow

A systematic troubleshooting workflow allows operators to quickly identify whether a problem stems from the film, the shrink packing machine settings, or an external environmental factor.

When a problem occurs, the first step is to check the "Three T’s": Time, Temperature, and Tension. If the shrink packing machine is producing poor results, verify that the temperature hasn't drifted and that the conveyor speed (dwell time) hasn't been accidentally changed. Next, inspect the film. Is it the correct gauge? Is it threaded correctly? Often, issues blamed on the machine are actually caused by using a lower-quality or incorrect film type for the application.

If the settings are correct, move to a mechanical inspection. Check for airflow blockages in the tunnel or a broken heating element. If the seal is failing, the problem is likely at the sealing head of the shrink packing machine. Look for uneven pressure across the seal bar or a worn-out sealing pad. Using a "thermal imaging camera" can be a high-tech way to quickly see if the heat distribution inside the tunnel is uneven or if there are leaks in the insulation.

Documenting these issues is vital for long-term success. Maintain a logbook for each shrink packing machine that records the settings used for different products and any technical issues encountered. This "knowledge base" helps new operators get up to speed quickly and allows maintenance teams to identify recurring patterns that might indicate a need for a major machine overhaul or a change in material suppliers.
