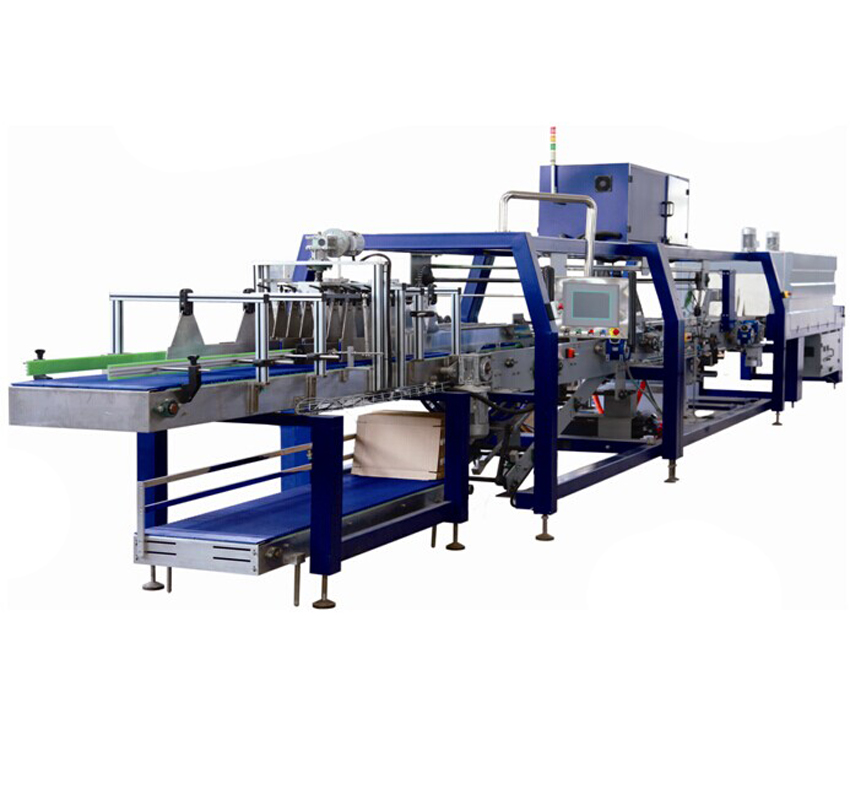

The machine is a drop type packing machine, which combined with auto-array
conveyor, auto-transport paper sheet function, auto packing function, auto sealing
tray and conveying output function. The product is delivered onto the paper sheet
after arrangement by arraying mechanism, and then the paper sheet is folded,
sprayed glue, sealed and formed, finishing the package process. The machine is
suitable for the formed and regular shape tray. The machine can match with
production line, with reliable performance and wide application range, is suitable for
various industries. etc.
●. Package piece speed : ≦45package /minute
●.Power supply. Total power : 380/220V,75KW (three-phase)
● External gas source : 4-6kgf/cm2
● Main motor: 380V 3300W
● Bottle separate electricity motor: 380V 820W*2
● Conveyor belt motor : 380V 750W
●Film cutting motor: 380V 820W
● Film feeding motor: 3.3W
● Tray feeding conveyor motor : 380V 1100W
● Bottle dividing motor :380V 250W
●Machine size (L*W*H) :13500*1215*2150mm(Can make according to special requirement)
●Package product size : can according to client special requirement.
●Working platform height ：L1150+50mm (can making according to special requirement).
●Conveyor belt : shanghai
●Usage film type : PE film and can use color film
●PE film width PE: according to client requirement , film thickness: 0.07mm-0.13mm;
●Film shrinkage ratio : length wise direction 70-80%, cross wise 20-30%.
●Circumstance condition: humidity≦98%, temperature:20-40℃.
●Noise: at working circumstance, noise ≦75DB.
●Whole machine all set safe protection device
Place of origin
Servo electric motor
Bus connector interface
Input and output module
Back Electricity shrink
Hot glue machine
SKF or same
