What Is A Jar Capping Machine?

At a Glance

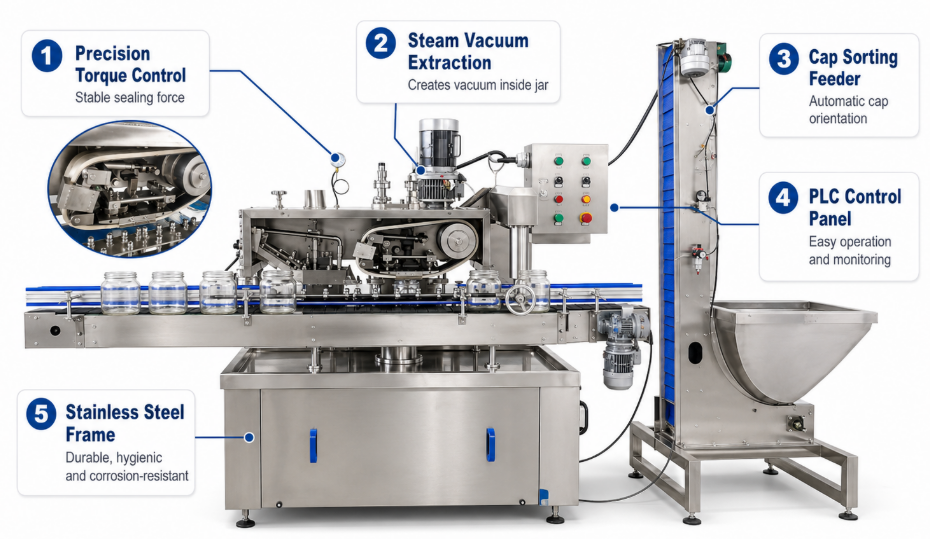

Important Features of Automatic Jar Capping Machine

An automatic jar capping machine incorporates advanced features such as servo torque control, integrated steam vacuum extraction, adjustable multi-stage clamping belts, heavy-duty stainless steel frames, and programmable automation interfaces.

Engineering a resilient jar capping machine requires balancing mechanical rigidity with sensitive mechanical adjustments. High-speed packaging operations encounter dynamic variable friction between metal lug caps and glass neck threads. To prevent container slippage or glass fracturing, industrial designs incorporate synchronized side clamping belts coated with high-friction vulcanized rubber. These belts stabilize the glass container bodies during the critical fraction of a second when the closing head rotates or twists the cap into place. Variable speed controllers allow engineers to synchronize the line speed of the capping unit directly with upstream filling systems and downstream labeling units.

In processing thermal-filled pastes, sauces, and preserved foods, vacuum chamber integration becomes the single most critical structural subsystem. The machine utilizes controlled steam injection into the container headspace right before closure placement. When the injected steam rapidly condenses inside the sealed glass jar, it creates a negative vacuum environment. This vacuum holds the lug cap down tightly against the glass bead, providing a clear visual tampered-evident pop button indicator for consumers while driving oxygen levels down to prevent aerobic bacterial growth. European food safety directives favor these specialized steam vacuum modules due to their non-chemical approach to extending shelf life.

Modern control architectures rely heavily on industrial Programmable Logic Controllers connected to intuitive touchscreens. Operators can store specific recipes for different container dimensions, thread pitches, and target application torques. Advanced sensors monitor cap presence, container jams, and inlet pressure. If a jar arrives without a cap, the system triggers an automatic rejection protocol or temporarily halts operation to prevent downstream contamination. Utilizing a high-performance Glass Jar Lug Capping Machine allows plant operators to achieve repeatable sealing parameters across millions of duty cycles while minimizing operator intervention.

Maintenance Best Practices: To ensure continuous performance and long equipment life, inspect capping belt wear and clean residual sugar or oil from drive rollers daily. Check steam injection nozzles every week to prevent mineral scale build-up that alters spray patterns, and verify torque calibration every month using a certified digital bottle torque tester.

Key Industrial Features

1. Precision Torque Regulation Systems

   The machine utilizes adjustable dynamic magnetic clutches or electrical servo drives to govern application torque. This prevents over-tightening that strips cap threads or breaks glass finish necks, while eliminating loose closures that lead to fluid leakage.

2. Integrated Steam Vacuum Extraction

   Engineered steam manifold jets displace trapped air in the jar top clearance zone before closure placement. Rapid condensation post-sealing creates high internal vacuum pressure necessary for long shelf-life food preserving.

3. Versatile Cap Sorting and Orienting Feeder

   Bulk caps are fed into a mechanical rotary sorter or vibratory bowl that aligns caps in the correct orientation. Incorrectly positioned caps are automatically redirected before entering the discharge chute.

4. Multi-Size Container Adaptability

   Tool-less changeover mechanisms allow quick mechanical adjustments for varying jar diameters, height profiles, and cap sizes. This versatility minimizes total line downtime during batch changes.

5. Sanitary Waterproof Washdown Construction

   Constructed using heavy-gauge stainless steel with IP65 electrical enclosures, the chassis stands up to aggressive daily chemical washdown routines mandated by food processing standards.

Working of Automatic Capping Machine

An automatic capping machine functions by continuously feeding containers along a conveyor, orienting closures via an overhead chute, displacing headspace air with steam, and applying precise rotational torque to seal each jar securely.

The operational workflow begins when filled jars travel along the main industrial conveyor line toward the capping station. A photoelectric sensor detects incoming containers and regulates an indexing starwheel or side clamping belts to establish uniform spacing. This consistent pitch prevents container collisions and ensures each jar enters the capping zone aligned with the cap discharge chute. Simultaneous side-belt stabilization holds the jar rigid, absorbing any rotational torque forces generated during the capping sequence.

As the jar advances, its neck finish catches the trailing edge of a pre-oriented cap sitting at the bottom of the feed chute. This "pick-off" mechanism relies on the forward kinetic motion of the container to pull the cap clear of the chute retaining spring. Immediately before the cap fully settles onto the jar neck finish, high-pressure dry steam shoots across the top space. This thermal steam drive sweeps out ambient air and oxygen, filling the neck cavity with hot water vapor.

Once the cap is engaged with the jar finish, it enters the dynamic capping head zone. Depending on the machine design, a series of counter-rotating rubber wheels or a synchronized press-and-twist belt assembly engages the closure. The mechanism spins the metal lug cap through its thread engagement pitch until reaching the mechanical torque limit. The hot steam trapped inside the jar cools down rapidly, condensing into liquid water and creating an internal vacuum that pulls the center button of the lug cap down into a locked, airtight seal.

Working Principle: The machine combines kinetic inline container displacement with synchronized mechanical torque delivery and thermal air-displacement dynamics. By replacing atmospheric headspace gas with steam immediately before mechanical lug torque application, the system achieves a hermetic seal backed by atmospheric pressure differentials upon thermal condensation.

Operational Process Steps

1. Infeed Container Transport and Alignment

   Jars enter the machine via a variable-speed slat conveyor. Guide rails align the containers, while twin side-gripping belts clamp the jar sides to provide rotational stability during transport.

2. Automated Cap Sorting and Chute Loading

   Bulk caps loaded into the lower hopper are elevated into a rotary sorter. Caps are oriented face-up and fed single-file down a inclined delivery chute fitted with proximity sensors.

3. Cap Pick-Off and Steam Jet Injection

   As the clamped jar passes beneath the chute exit, its neck finish engages the bottom cap. Simultaneously, a directional steam nozzle blasts saturated steam into the open neck space to evacuate trapped oxygen.

4. Rotary Torque Tightening

   The jar carries the cap directly between pairs of dynamic counter-rotating capping wheels. These wheels grip the cap edges and rotate the closure down to the prescribed torque setting.

5. Sealed Container Discharge and Inspection

   The sealed jar exits the capping zone. Downstream vacuum inspection sensors measure the deflection of the cap button, automatically rejecting any improperly sealed units off the main line.

Benefits of Using Automatic Jar Capping Machine

Integrating an automatic jar capping machine dramatically increases production capacity, prevents costly liquid leakage, extends shelf life through reliable vacuum sealing, reduces labor costs, and maintains consistent torque quality.

Upgrading to an automated jar capping machine delivers measurable financial returns for commercial packaging facilities. Manual cap tightening is slow, inconsistent, and causes repetitive strain injuries among operators. Automated lines achieve continuous output rates ranging from 60 to over 200 jars per minute, depending on container geometry and cap size. This output consistency eliminates line bottlenecks behind high-capacity liquid filling systems, maximizing overall plant productivity.

Beyond speed, automated torque control is essential for maintaining product quality. Manual capping often results in varied torque tightness; loose caps lead to product leakage during transit, while over-tightened caps strip lug threads or break glass jars. Automated machines use calibrated clutches and servo controls to apply precise force to every container. Integrating an advanced Chilli Sauce Pickles Vacuum Capping Machine delivers uniform sealing performance that protects brand reputation and reduces expensive distributor returns.

From a food safety and preservation standpoint, steam vacuum capping significantly slows oxidative degradation. Displacing oxygen within the sealed container preserves natural food colors, extends shelf stability, and prevents microbial growth without adding chemical preservatives. This capabilities opens access to premium export markets that enforce strict packaging integrity standards.

Operational Tips: When switching production batches between different liquid viscosities or jar heights, establish a digital logbook recording exact belt heights, chute side widths, and steam supply pressures. Standardizing these adjustments cuts changeover times down to under 15 minutes while maintaining seal quality across products.

Strategic Operational Advantages

1. High-Speed Production Throughput

   Automated inline systems process high container volumes per hour, matching the speed of modern automated filling lines and boosting total factory capacity.

2. Consistent Application Torque

   Servo-controlled driven capping wheels apply uniform torque to every cap, eliminating loose lids, seal failures, and broken container necks.

3. Superior Shelf-Life Extension

   Controlled steam vacuum extraction reduces oxygen levels in the container headspace, protecting delicate food color, flavor profiles, and nutritional value over extended storage periods.

4. Reduced Labor Costs and Improved Ergonomics

   Automating the capping stage minimizes manual labor requirements and eliminates repetitive strain injuries associated with manual cap twisting.

5. Compliance with Strict Hygienic Standards

   Constructed with smooth stainless steel surfaces and washdown components, automated systems meet strict HACCP and GMP sanitary requirements for food and pharmaceutical packing operations.

Summary

Selecting the correct capping technology is essential for building a reliable packaging line. A high-performance jar capping machine combines robust mechanical engineering, precise drive control, and effective vacuum extraction to deliver consistent hermetic seals on every container. Integrating specialized steam-vacuum units allows food and chemical processors to boost production speeds, eliminate leakage, reduce labor overhead, and extend product shelf life. Investing in automated capping equipment provides a strong foundation for scaling up production while maintaining high product quality.
