Plastic Bottle CO2 Laser Production Date Code Printer

Availability:
Quantity:
  • JP-C40

  • MARS

  • 845611

Product Description

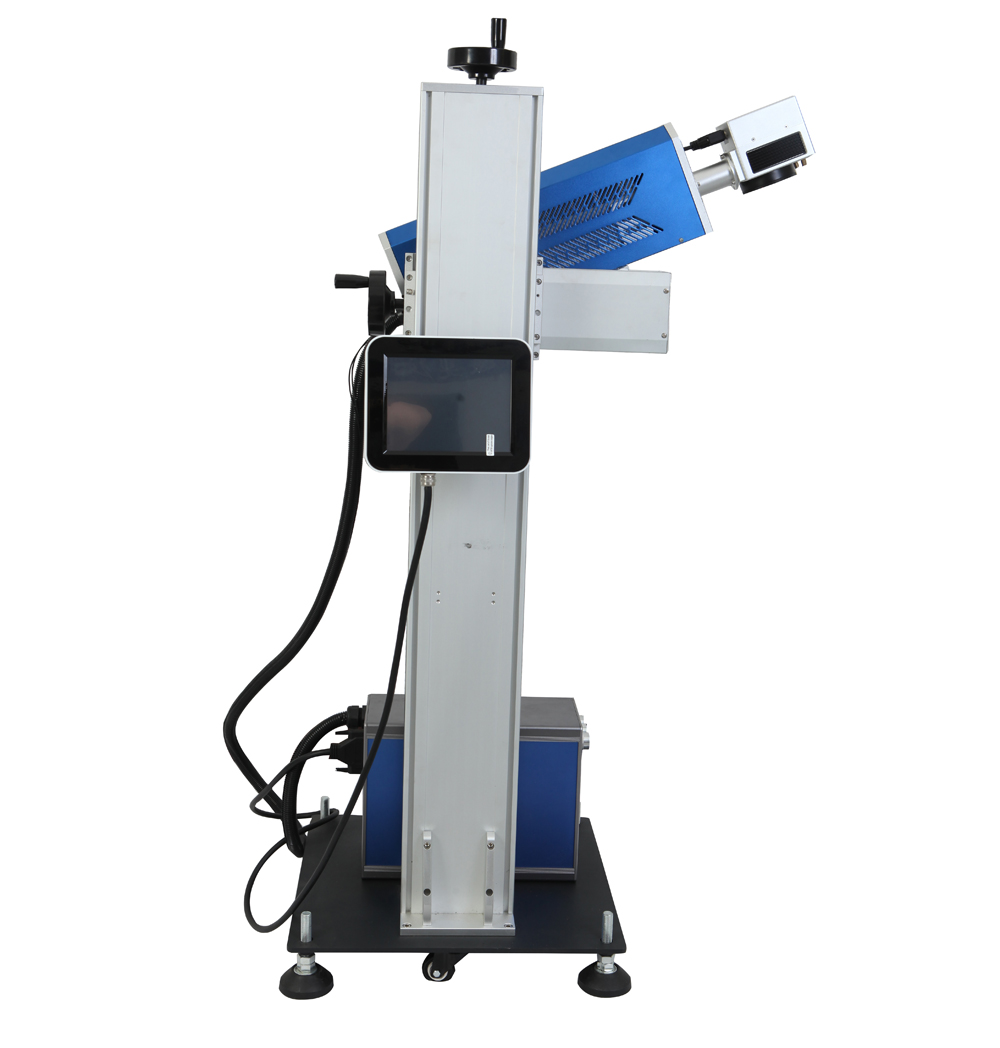

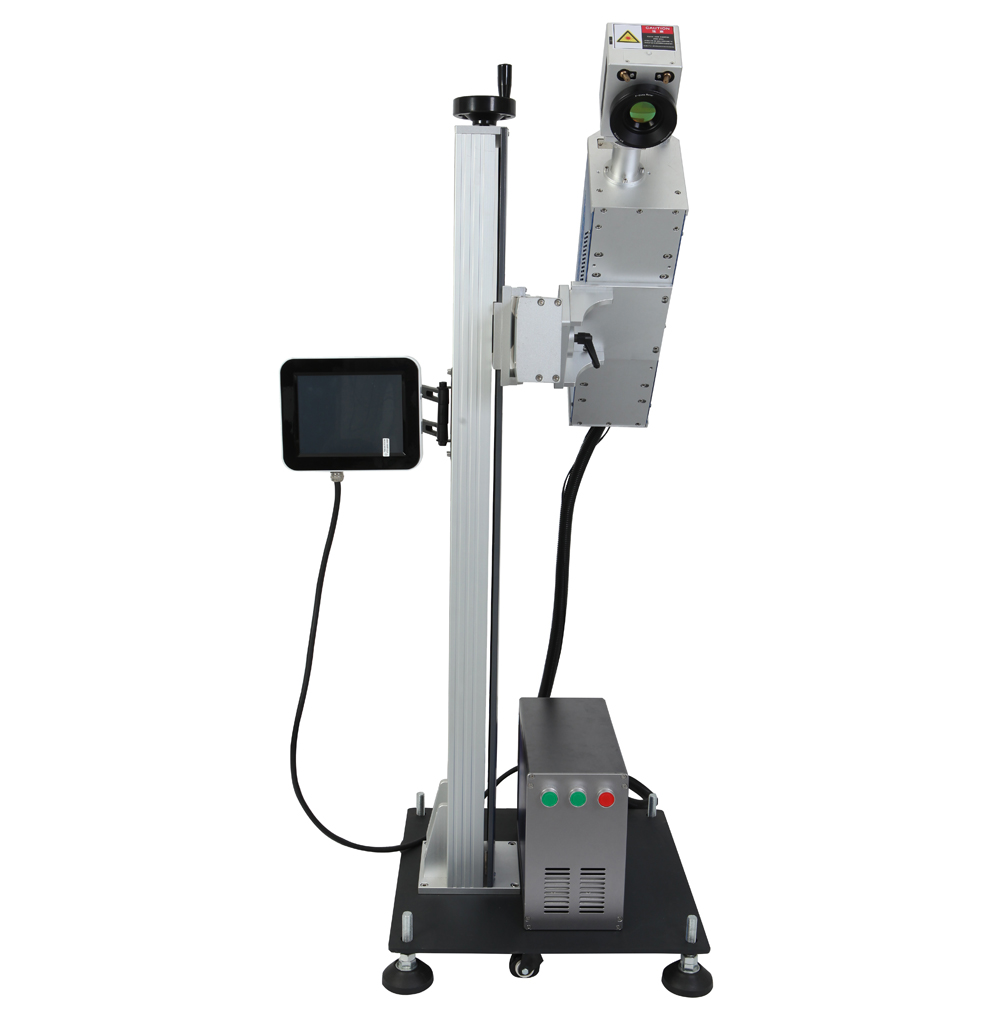

Plastic Bottle CO2 Laser Production Date Code Printer


-Compact design and fast installation

-Easy to be integrated at any position of the production line -Original design, small size and lightweight, equiped with a small table or mounting bracket with the use of production line

-More further environmental protection and energy saving -Un-contact processing, more environmental protection, lower power, fast laser marked

-Easy to use and Excellent compatibility

-Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface, use with automatical anti-counterfeit and anti-disorder system

-Adopt import laser, more safer and faster APPLICATIONS Food, Beverage, Tobacco, Electronic Component, Pharmaceuticals, ceramic wares, Automobile part, Electrical Wire, Cable, Arts and Crafts, Rubber LASER CO2 Metal RF laser Power: 10W High-speed, stable performance, adjustable power, applicable to most of nonmetal material Carve and cut product very convenience, depth could be adjustable Operate Interface -Configure with laptop


Main Technical Parameters:

Model

JP-C40

Laser Power

40W

Wavelength

10.6μm

Rated Power

≤800W

Marking Area

70mm*70mm

Laser Source

QC C02 laser

Field Lens

CARMAN HAAS

Galvanometer Scanner

Sino-Glavo scanning head

Control System Genuine Software

EARAIN

Cooling Way

Air cooling

Min. Character

≥0.4mm

Min. Line Width

≥0.1

Marking Speed

≤7000mm/s

Repeated Positioning Precision

0.01mm

Power Supply

Whole set MEANWELL power

Lifespan

Laser device 30000 hours

Language

English/Chinese

Net Weight

60.4Kg
