QHS-1500
MARS
842230
Feature:
1. All PLC control, full-automatic working
2. Touch screen contril panel, easy operate

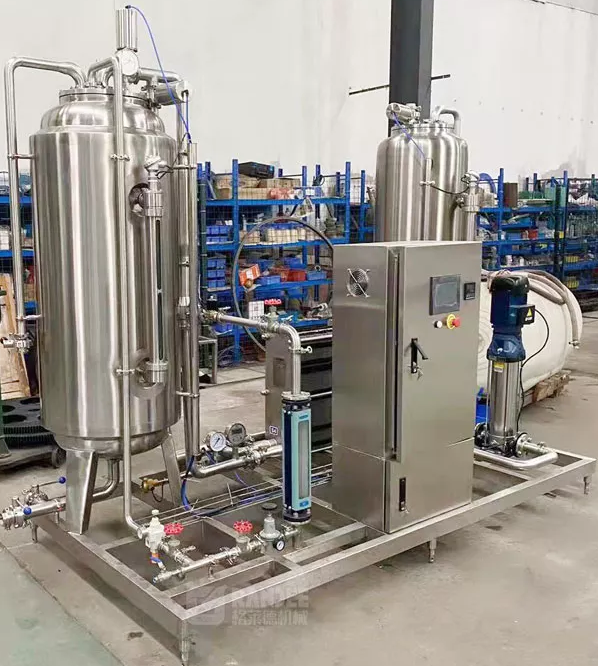

3. This equipment utilizes a vacuum pump to deair the water, then a Syrup Tank, a Water Tank and a Mixing Tank are used to mixing the water and syrup according to the pre-determined ratio.
4. High quality Grandfos pump and Venturi device are used to mix the CO2, and drive the beverage through a heat exchanger to reduce the beverage temperature.
5. The final beverage storage tank is also a carbonating tank with the thermal insulating jacket to keet the product at 4 C.
6. The proportion between water and syrup can be adjusted from 3: 1 to 6: 1, and the concentration of CO2 can be more than 7g/L.
7. The capacity is from 3,000L/H to 15,000L/H.
Model | QHS-1500 |
Production capacity | 1000-2000L/Hour |
Syrup and water ratio scope | 1:3-1:6 |
Gas content(CO2:H2O volume ratio)(GV) | 2.5-3.0 |
Temperature in chilled water | 0 -5ºC |
Water deoxidized method | Deoxidized by CO2 or Deoxidized by vacuum system |
Working pressure of pre-carbonization | Pre-carbonization tank :- 0.05 — -0.06Mpa |
Working pressure in storage tank (MPa) | 0.2-0.5 |
Power | 5.2Kw |
Overall dimensions | 1700×1200×1700mm |
Weight | 1000Kg |
